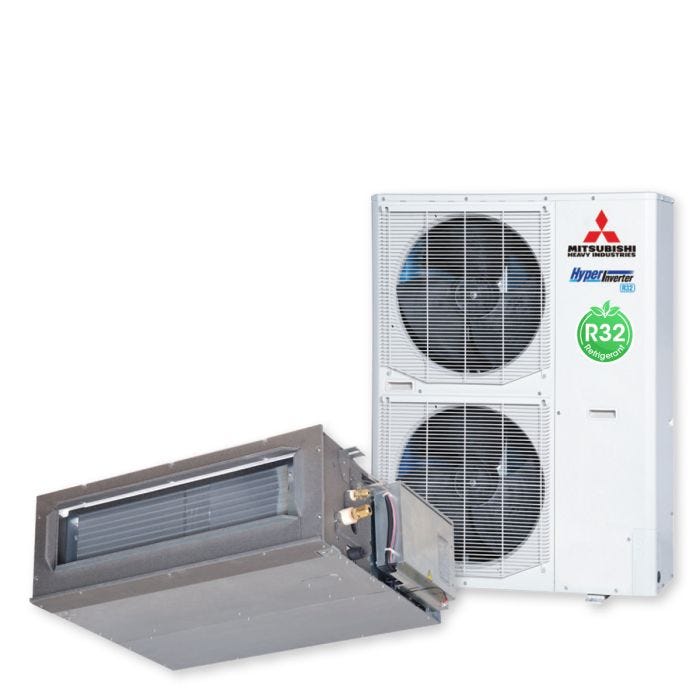

14.0kW 3-Phase R32 Mitsubishi Heavy Industries Hyper Inverter

Three phase MHI high static Hyper Inverter with 14.0kW output capacity and R32 refrigerant.

You may also need

AirClean Sanitiser 400G
SKU: ACFSAN400G
Jet Ball Diffuser
Loose Core Egg Crate Grille 1163 x 563mm Neck / 1195 x 595mm Face
SKU: 244036
MDO-S 350 x 350 4-Way Outlet Plastic Clip Kit
Double Deflection 450 x 450mm Neck / 503 x 503mm Face
SKU: 244227
Egg Crate Hinged Filter Grille 700 x 500mm Neck / 747 x 547mm Face
SKU: 244311
MDO-X 350 x 350 4-Way Outlet Metal Spring Clip Kit
MDO-X 525 x 350 6-Way Outlet Plastic Clip Kit

Description

Mitsubishi Heavy Industries FDUA Hyper Inverter Series

Our FDUA series of ducted systems are a quiet and discreet solution for multiple rooms. Coming in a range of capacities ranging from 10kW up to 23.5kW and incorporating a range of convenient features and functions, the FDUA is the perfect heating and cooling solution for any sized Aussie home.

Features

Increased Energy Efficiency

With an improved heat exchanger in the outdoor unit, boosting refrigerant distribution throughout the system, coupled with our highly efficient DC fan motor and R32 refrigerant, the FDUA series boasts industry leading energy efficiencies which means reduced running costs for your home.



Splitable Indoor Unit

Splittable design allows the indoor unit to be separated into two components for easier handling during installation.



Quiet Operation

Thanks to our highly efficient DC fan motor, the FDUA series boasts quiet operation levels. Com­bined with the unit’s Silent Mode, the FDUA series ensures no interruptions to room acoustics and a good night’s sleep for you and your family.



Wide Operation Range

With a wider operating range, the FDUA series can operate in cooling mode in temperatures up to 50°C making it suitable for the tough Aussie conditions.

Specifications

Rated Capacity - Cool 14.0
Rated Capacity - Heat 16.0
Indoor Air Flow (I/s) Turbo/High/Medium/Low 1000 / 867 / 733 / 600
Power Supply (V/Hz) 380-415 / 3 / 50
Weight - Indoor (kg) 66
Weight - Outdoor (kg) 99
Capacity Range - Cool (kW) 5.0~14.5
Capacity Range - Heat (kW) 4.0~18.0
EER/COP (Cool/Heat) 3.48 / 3.82
Indoor Dimension (W x D x H) [mm] 1450 x 930 x 398
Outdoor Dimension (W x D x H) [mm] 970 x 370 x 1300
Sound Pressure Level (dB/A) 48 / 47 / 43 / 38
Sound Power Level - Outdoor (dB/A) 69
Refrigerant Type R32

Downloads
