Maxi Lime Aspen Pump

FP2213

FP2213 Maxi Lime 35 Litre per hour Condensate Pump

Add to Job List

You may also need

Joiners
Joiners
Polyaire

Add to Job List
Ceiling Caps 110mm
Ceiling Caps 110mm
SKU: 736006
Staark HVAC

Add to Job List
Mini Aqua Aspen Pump
Mini Aqua Aspen Pump
SKU: 864982
Polyaire

Add to Job List
Galvanised Strap Perforated Hoop Iron 15m
Galvanised Strap Perforated Hoop Iron 15m
SKU: 864397
Polyaire

Add to Job List
Joiner 110mm
Joiner 110mm
SKU: 736012
Staark HVAC

Add to Job List
Duct Tape Foil Reinforced 75mm
Duct Tape Foil Reinforced 75mm
SKU: 664185
Polyaire

Add to Job List
T Joiner 110mm
T Joiner 110mm
SKU: 736014
Staark HVAC

Add to Job List
Micro Leak Detector Big BLU 1 lLitre
Micro Leak Detector Big BLU 1 lLitre
SKU: RT100S
Polyaire

Add to Job List

Description

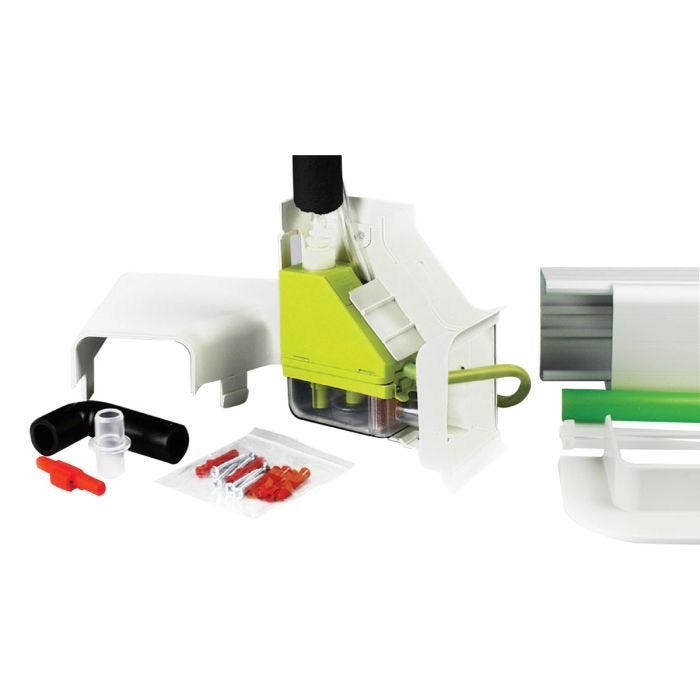

Designed for larger units & humid environments, the ‘all-in-one system’ Maxi Lime elbow pump gives you supreme power when needed.

Features

  • Range of trunking systems
  • Left or right install
  • Sits in trunking elbow
  • Easy access for servicing

Suitability

  • Up to 12ton / 157,000Btu/h
  • Large commercial AC units
  • Ductless mini split systems

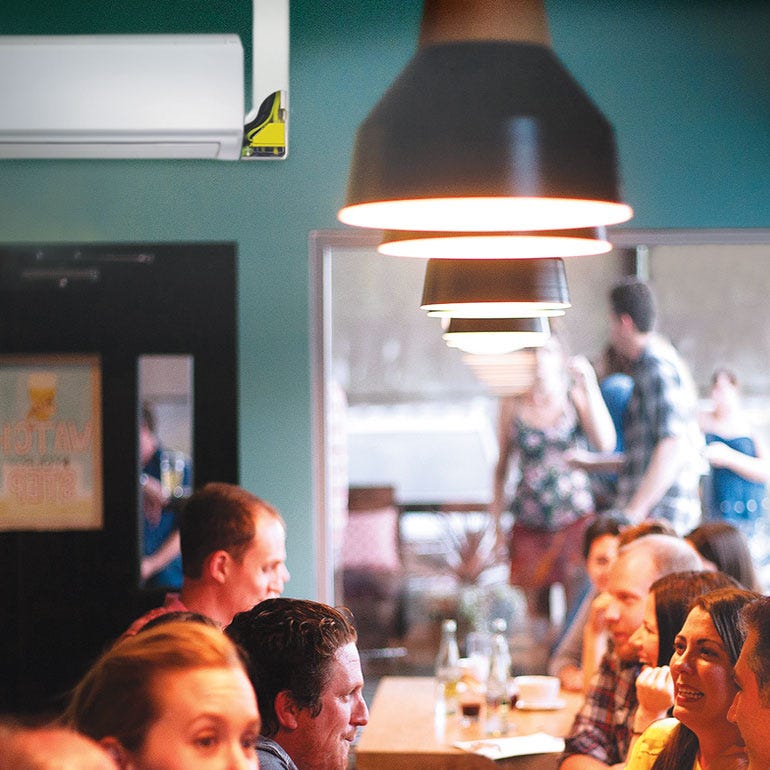

  •  Perfect for large commercial high wall split units

Technical

Data Based @ 230 VAC 50Hz

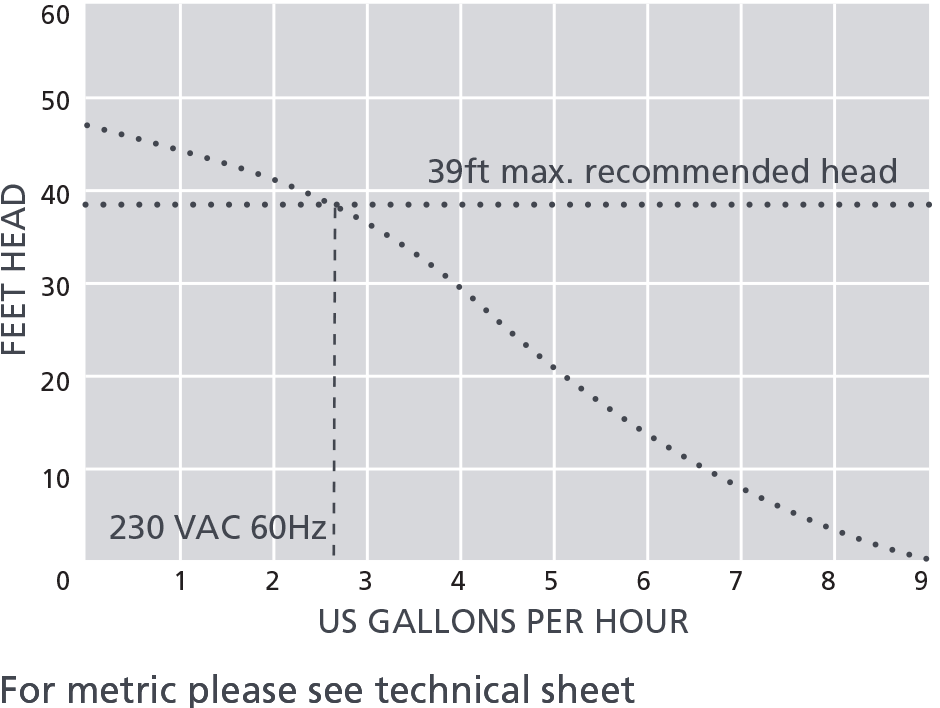

Max. rec. head 49ft / 10m
 Max. suction lift Max. flow 12L/h
dB(A) 27 Power supply 230 VAC, 0.11A, 16W, 50/60Hz
Rated Non continuous
 Class II appliance
Max. unit output Up to 12ton / 157,000Btu/h Max. water temp 40°C / 104°F
Discharge tube 1/4" / 6mm ID
 IP Protection IP24
Safety switch 3.0A Normally closed
 Thermal protection ✓
Fully potted ✓ Self priming  ✓
