Description

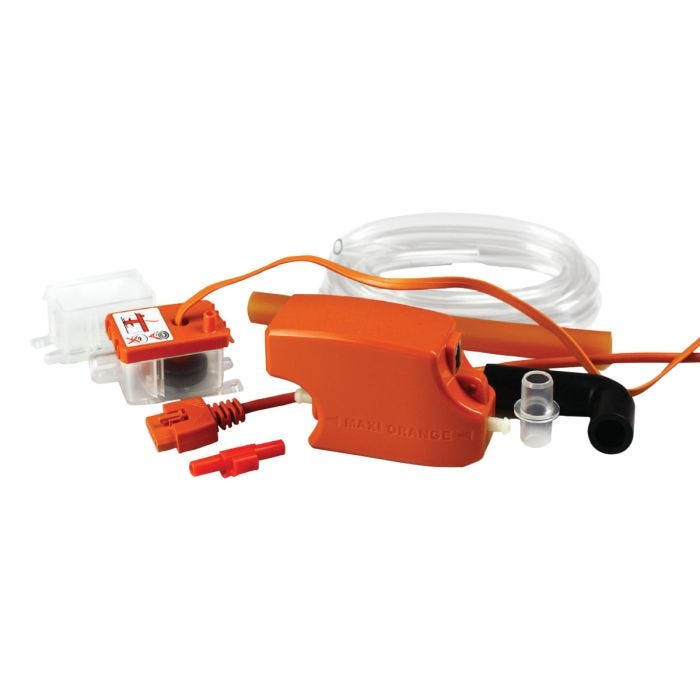

Need more performance? Designed for larger units, the Maxi Orange pump gives you the extra power when you need it.
Features
- Univolt
- High power motor
- Superior performance
- Submersible secondary reservoir included
Suitability
- Up to 46kW / 157,000Btu/h
- High wall split systems, ducted units, floor standing & chassis units
- Perfect for large commercial units
Technical

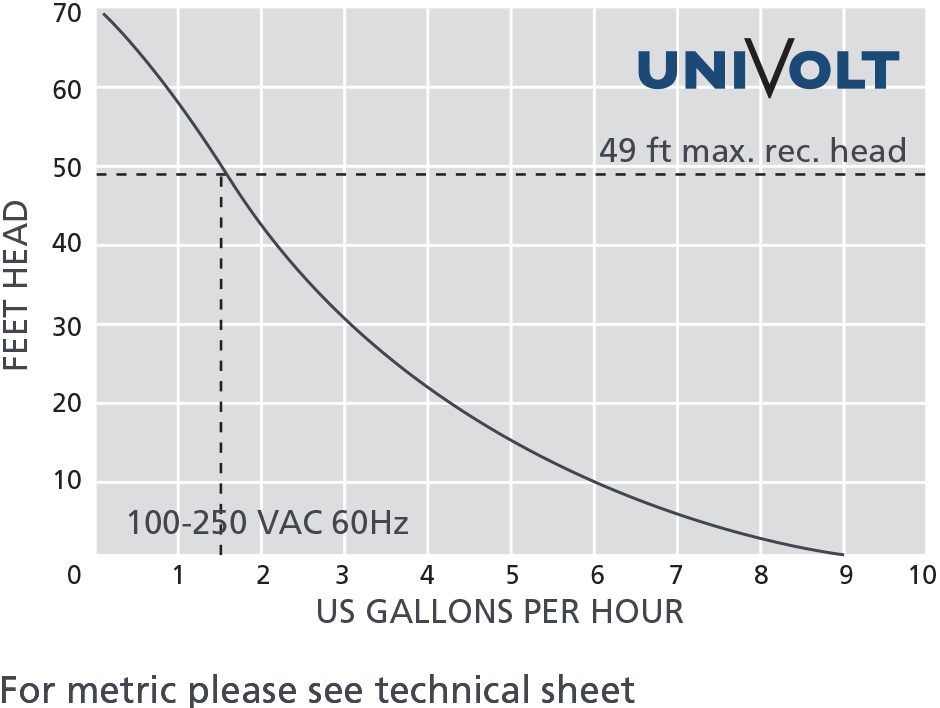

| Data Based | @ 230 VAC 50Hz | Max. flow | 35L/h |
| Max. rec. head | 49ft / 10m |
Max. suction lift | 6.5ft / 2m |
| dB(A) | 35 | Power supply | 230 VAC, 0.11A, 16W, 50/60Hz |
| Rated | Non continuous |
Class | II appliance |
| Max. unit output | 12ton / 157,000Btu/h | Max. water temp | 40°C / 104°F |
| Discharge tube | 1/4" / 6mm ID |
IP Protection | IP21 |
| Safety switch | 3.0A Normally closed |
Thermal protection | ✓ |
| Fully potted | ✓ | Self priming | ✓ |
Specifications
