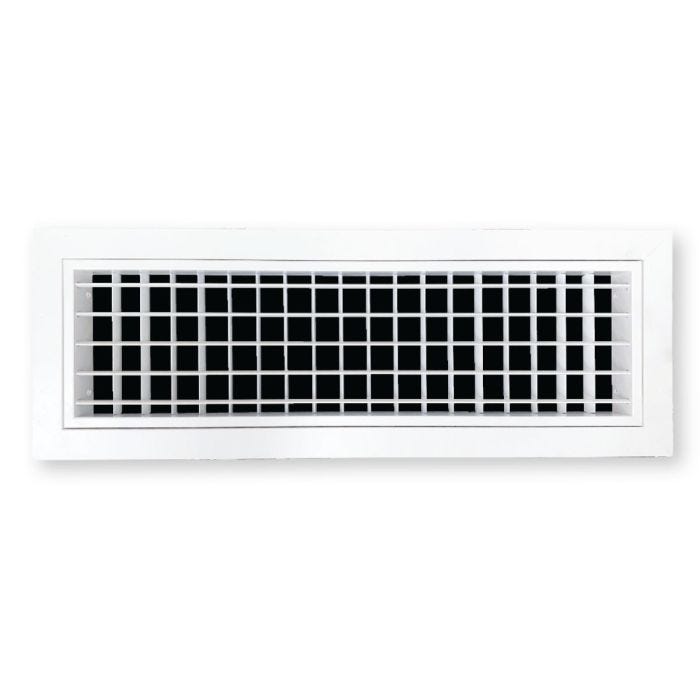

Double Deflection 350 x 200mm Neck / 403 x 253mm Face

244085

Universal outlets or Double Deflection Grilles are generally used in sidewall applications. They consist of two separate rows of individually adjustable vanes - front and rear.

You may also need

Double Deflection 450 x 175mm Neck / 503 x 228mm Face
SKU: 247305
Double Deflection 400 x 150mm Neck / 453 x 203mm Face
SKU: 247303
Double Deflection 500 x 500mm Neck / 553 x 553mm Face
SKU: 244052
Double Deflection 300 x 150mm Neck / 353 x 203mm Face
SKU: 247301
Double Deflection 450 x 450mm Neck / 503 x 503mm Face
SKU: 244227
Double Deflection 500 x 200mm Neck / 553 x 253mm Face
SKU: 244222
Double Deflection 350 x 250mm Neck / 403 x 303mm Face
SKU: 244391
Double Deflection Register Fixed Core  300 x 100mm Neck / 339 x 139mm Face
SKU: 244611

Description

The Front Vanes are horizontal so the primary air leaving the outlet is directed above the room occupants and does not reach the breathing zone until well mixed with the secondary room air.

The Rear Vanes are vertical and are used to direct the air in a straight blow or spread the air as required by the room layout. If required, air can be directed at an angle to one or both sides, and still retain a near parallel air stream pattern.

The usual settings, however are straight blow, semi-divergent or fully divergent blow. The blow distance decreases with a greater air spread and the performance charts indicate three different types of blow for normal vane settings.

Specifications

Neck Size (mm) 350 x 200mm
