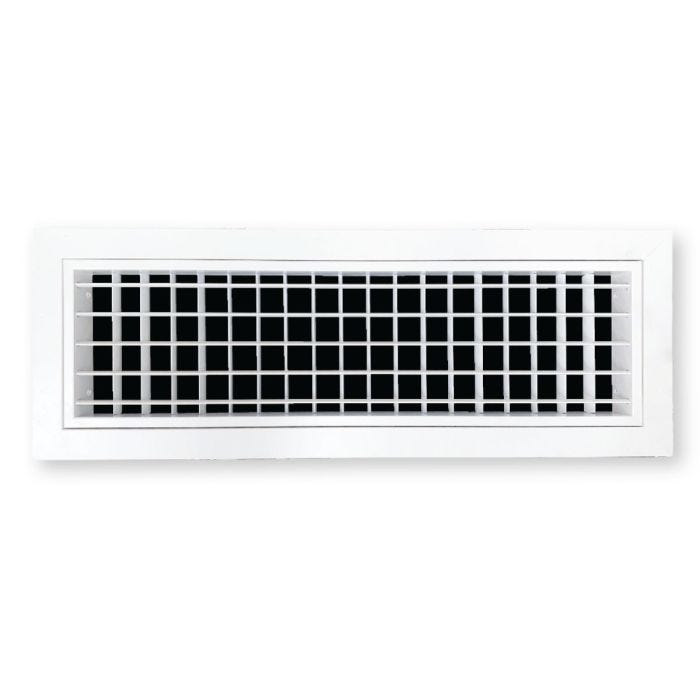

Double Deflection 400 x 150mm Neck / 453 x 203mm Face

247303

Universal outlets or Double Deflection Grilles are generally used in sidewall applications. They consist of two separate rows of individually adjustable vanes - front and rear.

You may also need

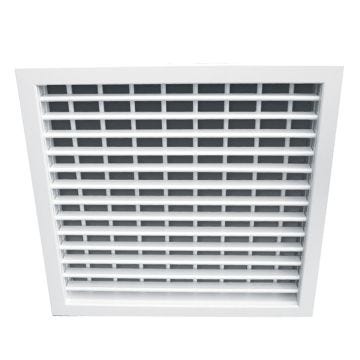

Double Deflection Register Fixed Core 300 x 200mm Neck / 339 x 239mm Face
SKU: 244619
Double Deflection 300 x 300mm Neck / 353 x 353mm Face
SKU: 244049
Double Deflection 300 x 100mm Neck / 353 x 153mm Face
SKU: 247300
Double Deflection Register Fixed Core 400 x 250mm Neck / 439 x 289mm Face
SKU: 245667
Double Deflection Register Fixed Core 500 x 300mm Neck / 539 x 339mm Face
SKU: 245670
Double Deflection 500 x 100mm Neck / 553 x 153mm Face
SKU: 244402
Double Deflection 400 x 400mm Neck / 453 x 453mm Face
SKU: 244088
Double Deflection 600 x 300mm Neck / 653 x 353mm Face
SKU: 244152

Description

The Front Vanes are horizontal so the primary air leaving the outlet is directed above the room occupants and does not reach the breathing zone until well mixed with the secondary room air.

The Rear Vanes are vertical and are used to direct the air in a straight blow or spread the air as required by the room layout. If required, air can be directed at an angle to one or both sides, and still retain a near parallel air stream pattern.

The usual settings, however are straight blow, semi-divergent or fully divergent blow. The blow distance decreases with a greater air spread and the performance charts indicate three different types of blow for normal vane settings.

Specifications

Neck Size (mm) 400 x 150mm
