Linear Slot Diffusers

Linear slot and linear bar grilles provide versatile airflow solutions with their sleek, linear designs, offering efficient air distribution and contemporary aesthetics for various HVAC applications.

9 Items

Sort By
Removable Core Linear Slot 600 x 151mm Neck / 645 x 211mm Face
SKU: 245310
Removable Core Linear Slot 1200 x 110mm Neck / 1245 x 156mm Face
SKU: 245309
Removable Core Linear Slot 1000 x 110mm Neck / 1045 x 156mm Face
SKU: 245308
Removable Core Linear Slot 900 x 110mm Neck / 945 x 156mm Face
SKU: 245307
Removable Core Linear Slot 600 x 110mm Neck / 645 x 156mm Face
SKU: 245306
Removable Core Linear Slot 1150 x 110mm Neck / 1195 x 156mm Face
SKU: 245305
Fixed Core Linear Slot 1200 x 135mm Neck / 1232 x 170mm Face
SKU: 245299
Fixed Core Linear Slot 1200 x 90mm Neck / 1232 x 126mm Face
SKU: 245298
Fixed Core Linear Slot 1200 x 45mm Neck / 1232 x 82mm Face
SKU: 245297

Linear Slot Diffusers (LSD) and Bar Grilles

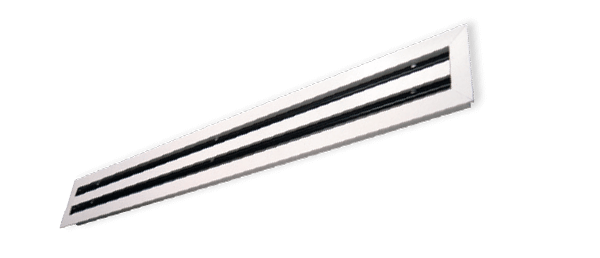

Polyaire Linear Slot Diffusers

The Polyaire Linear Slot Diffusers offer a stylish alternative for ceiling or high sidewall ventilation, allowing for individual or continuous line installation in various ceiling applications. Available in 20mm or 25mm slot widths, with 1 to 8 slots, models include fixed (LSD-FC) and removable (LSD-RC) cores. They feature adjustable air pattern control for a 180º adjustment directly from the diffuser face, recommending volume control via main duct run or butterfly damper. Constructed from extruded aluminium, they come in a standard powder coat white finish, with a maximum section length of 3 metres, though other finishes can be customised.

Disclaimer

The manufacturer reserves the right to alter product specifications without notice. E. & O.E. Conditions Apply.
