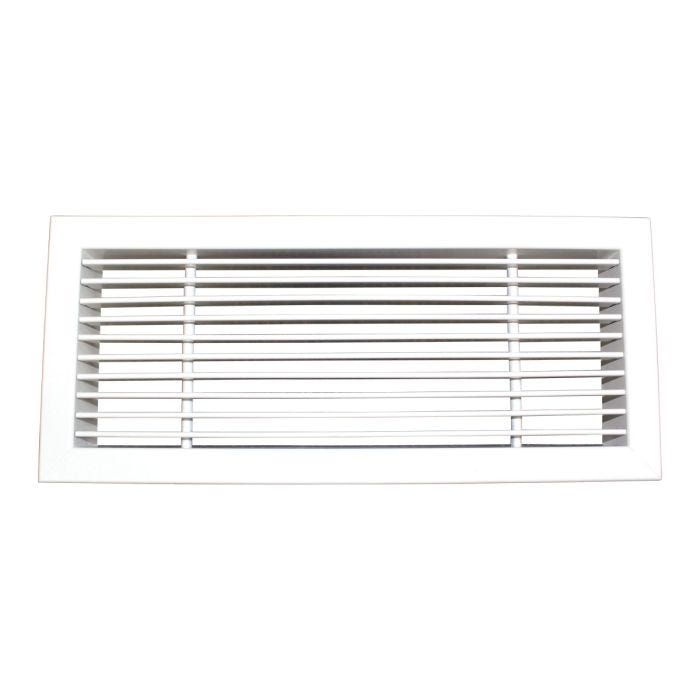

Linear Bar Grille 1200 x 150mm Neck / 1240 x 190mm Face

Polyaire Model BG Linear Bar Grilles are extremely versatile and can be mounted in the wall, sill, floor or ceiling.

Manufactured from extruded aluminium the Linear Bar Grilles may be used for either supply, return, relief or exhaust systems and typically are suitable for installation in Shops, Showrooms, Hotels, Conference Rooms, Commercial Offices, Reception Areas, Sports Halls, Leisure Centres and all Residential Applications.

The Polyaire Linear Bar Grilles are available with multiple blade profiles that include a slimline blade as well as a heavy duty blade. In addition these blade profiles are available with deflection angles of 0°, 15° and 30° providing a solution for every application. Providing further flexibility is the availability of 5 different flange styles ranging from flangeless to 25mm flange.

Construction is of a fixed core, while a removable or hinged core option is also available.

Standard finish is powder coat white while other finishes including anodising are available to suit the interior and architectural design requirements.

Polyaire Linear Bar Grilles are manufactured to order in various sizes and lengths including continuous applications with mitred corners.
