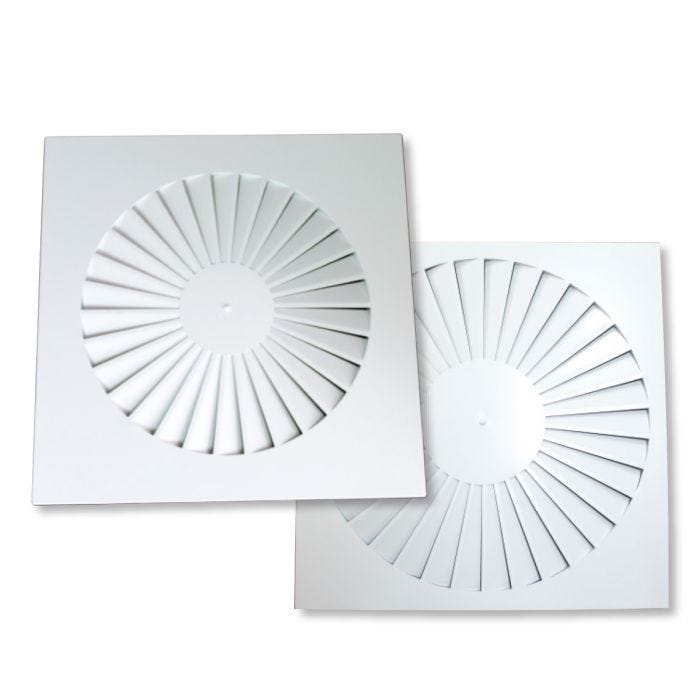

Square Swirl Diffuser PSC-Q 495mm Face / 350mm Neck

247109

The Polyaire PSC Swirl Diffuser has fixed blades that create rotational as well as axial, tangential and radial air movement.

You may also need

Square Outside Air Louvre 250 x 250mm Neck / 304 x 304mm Face

SKU: 244001

RAG-X Kit 350mm Spigot

Door Relief Grille 600 x 250mm Neck / 630 x 280mm Face

SKU: 244023

Linear Bar Grille 800 x 150mm Neck / 840 x 190mm Face

SKU: 247312

RAG-X (Grille Only)

Door Relief Grille 450 x 200mm Neck / 480 x 230mm Face

SKU: 244625

Double Deflection Register Fixed Core 500 x 200mm Neck / 539 x 239mm Face

SKU: 245669

RAG-X (Box Only)

Description

This means that it produces a strong horizontal swirl, obtaining high inductivity, to allow the introduced flow to rapidly mix with the ambient air to reduce temperature and also perceived drafts or hot/cold spots.

Velocity is reduced while still maintaining volume and reduced noise and this product is ideally suited to handling large volumes. The PSC maintains high quality air diffusion throughout the space with minimal temperature variation. The Swirl effects ensure good mixing of supply and ambient air.

The PSC is also suitable for return air application due to low pressure drop across the grille. The standard PSC is made of cold rolled galvanized plate steel powder coated white (RAL9010) Other finishes are available to suit the interior and architectural design requirements. The face plate is 595mm square and suitable for surface mounting in the ceiling or alternatively as a lay-in for T-Bar ceiling installations.
