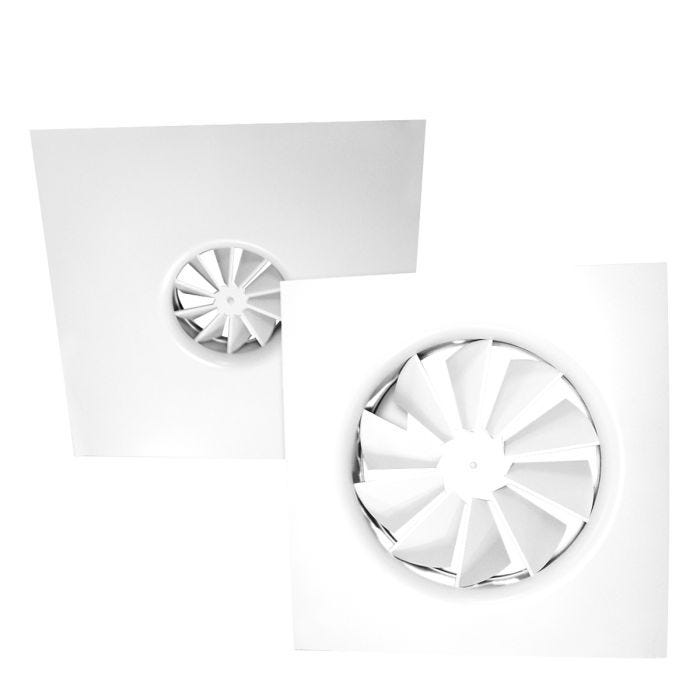

Square Swirl Diffuser PSA Q 595mm Face / 313mm Neck

247092

The Polyaire PSA Swirl Diffuser promotes high entrainment of ambient air into the supply air stream.

You may also need

Double Deflection Register Fixed Core 500 x 300mm Neck / 539 x 339mm Face
SKU: 245670
Square Swirl Diffuser PSA-Q 595mm Face / 398mm Neck
SKU: 247093
Square Swirl Diffuser PSA-Q 595mm Face / 248mm Neck
SKU: 247091
Double Deflection 400 x 400mm Neck / 453 x 453mm Face
SKU: 244088
Square Outside Air Louvre 150 x 150mm Neck / 204 x 204mm Face
SKU: 244403
Double Deflection Register Fixed Core 350 x 150mm Neck / 389 x 189mm Face
SKU: 244613
Opposed Damper Blade
Square Swirl Diffuser PSC-Q 595mm Face / 350mm Neck
SKU: 247105

Description

The helical airflow reduces air velocity and provides a consistent spread resulting in relatively uniform temperature, humidity and air quality in all parts of the occupied space.
During cooling the warmest air in the room is immediately mixed with the supply air and temperature variation around the space (hot & cold spots) is minimised.

During heating, the high induction of the room air by the supply swirl ensures sufficient air diffusion to minimise stratification and stagnant areas in the space. They are suitable for use in both constant volume flow and VAV systems and are suitable for all types of installation in closed ceilings, above open grid ceilings and in ceiling panels.

The standard PSA is made of cold rolled galvanized plate steel powder coated white (RAL9010). Other finishes are available to suit the interior and architectural design requirements. The face plate is 595mm square and suitable for surface mounting in the ceiling or alternatively as a lay-in for T-Bar ceiling installations.

Specifications

Neck Size (mm) 313mm
