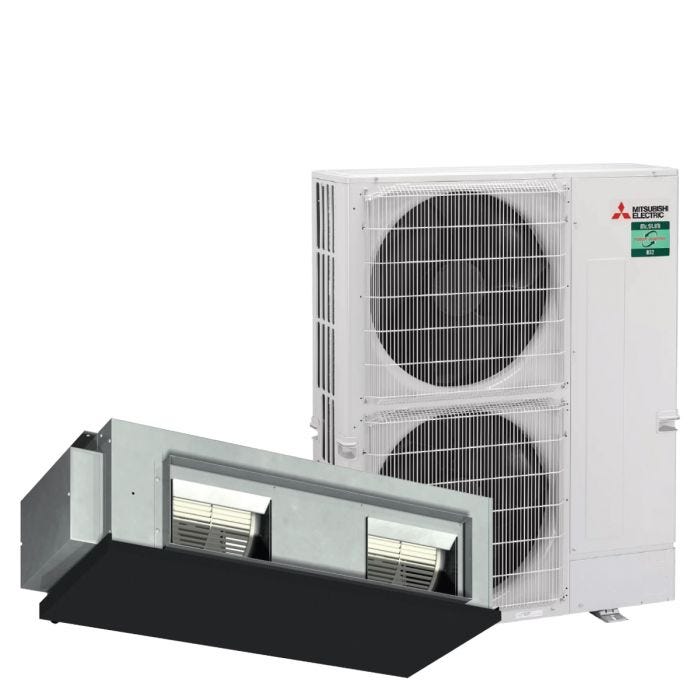

10.0kW R32 Mitsubishi Electric Ducted Reverse Cycle Air Conditioner

Single Phase Mitsubishi Electric Ducted Air Conditioner with 10.0kW output capacity and R32 refrigerant.

You may also need

Removable Core Linear Slot 1200 x 110mm Neck / 1245 x 156mm Face
SKU: 245309
Double Deflection Register Fixed Core 400 x 150mm Neck / 439 x 189mm Face
SKU: 244614
Egg Crate Hinged Filter Grille 600 x 500mm Neck / 647 x 547mm Face
SKU: 244137
Double Deflection 350 x 350mm Neck / 403 x 403mm Face
SKU: 244086
Double Deflection 300 x 300mm Neck / 353 x 353mm Face
SKU: 244049
MDO-X 525 x 350 6-Way Outlet Plastic Clip Kit
Removable Core Egg Crate 450 x 450mm Neck / 495 x 495mm Face
SKU: 244294
Double Deflection 400 x 400mm Neck / 453 x 453mm Face
SKU: 244088

Description

Mitsubishi Electric Ducted Air Conditioners

Mitsubishi Electric offers you technology that is quiet, simple to use, energy efficient, and above all, reliable. Mitsubishi Electric ducted air conditioning is climate control at the touch of a button. It provides a central air conditioning solution to maintain total comfort throughout the whole home.

Features

  • R32 Refrigerant
  • High Static Pressure
  • Flexibility ducting design
  • Optional PAR-40MAA Wall mounted controller
  • Longer maximum piping length
  • Optional Zone Controller
  • WiFi Control

Specifications

Rated Capacity - Cool 10.0
Rated Capacity - Heat 11.2
EER (Cool) 4.18
AEER (Cool) 4.01
Power Supply (V/Hz) 230 / 1 / 50
Weight - Indoor (kg) 63
Weight - Outdoor (kg) 113
Capacity Range - Cool (kW) 4.9~11.4
Capacity Range - Heat (kW) 4.5~14.0
EER/COP (Cool/Heat) 4.18 / 4.46
Indoor Dimension (W x D x H) [mm] 1400 × 634 x 400
Outdoor Dimension (W x D x H) [mm] 1050 × 330 (+40) x 1338
Weight (Indoor Net/Gross) [kg] 63
Sound Power Level - Indoor (dB/A) 39 – 42
Sound Power Level - Outdoor (dB/A) 49 (69)
Refrigerant Type R32
