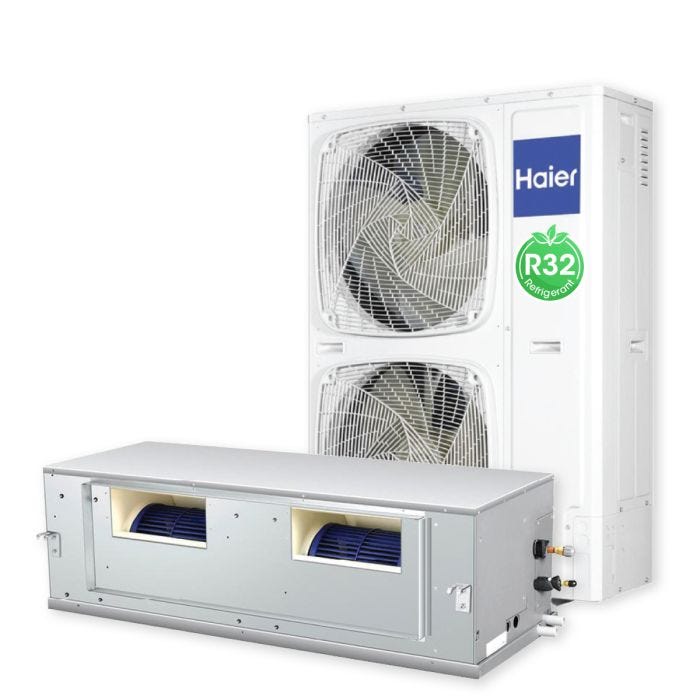

12.5kW R32 Haier Ducted Reverse Cycle Air Conditioner

Single Phase Haier Ducted Air Conditioner with 12.5kW output capacity and R32 refrigerant.

You may also need

Silentflex Duct R1.0-450mm
SKU: 110324
Loose Core Egg Crate Grille 450 x 450mm Neck / 482 x 482mm Face
SKU: 244034
Double Deflection 450 x 450mm Neck / 503 x 503mm Face
SKU: 244227
Removable Core Linear Slot 1150 x 110mm Neck / 1195 x 156mm Face
SKU: 245305
MDO-X 230 x 330 Spring Clip Kit-200
SKU: 231213
Egg Crate Hinged Filter Grille 750 x 400mm Neck / 797 x 447mm Face
SKU: 247201
Firebreak Duct R0.6-250mm
SKU: 110006
MDO-X 400 x 400 Plastic Clip Kit-400
SKU: 231422

Description

Quiet to run and seamless in appearance, our Smart Power ducted air conditioning systems are the ideal option for comfortable heating and cooling without interrupting your interior. The system is made up of an outdoor unit, an indoor unit hidden in the ceiling and discreet vents connected via flexible ducting. Plus, with optional Smart Zone control, you can control the temperature in individual rooms.

Haier High Static Ducted Air Conditioner

The Smart Power high static ducted indoor unit delivers powerful heating and cooling to every room, installed hidden in the ceiling cavity or under the floor for an uninterrupted interior.

Smart Power

Haier’s Smart Power ducted air conditioning systems provide an effective whole-of-home heating and cooling solution. The system is made up of an outdoor unit in a suitable location, indoor unit often located in the ceiling, flexible ductwork to deliver airflow to multiple rooms through discreet vents and controller for the whole air conditioning system.



Smart Zone Control

For control over the airflow to individual rooms, Haier offers an optional SmartZone controller. With up to eight controllable zones, SmartZone lets you turn the airflow on or off to rooms depending on how they are used, minimising unnecessary heating or cooling.



Corrosion Protection

The Blue Fin coating on the indoor and outdoor coil is hydrophilic for quick water drainage and resistance against corrosion.



R32 Low Impact Refrigerant

Our air conditioning systems use a next-generation R32 refrigerant, which efficiently carries heat and has 33% the global warming potential of R410A.

Specifications

Rated Capacity - Cool 12.5
Rated Capacity - Heat 14.0
EER (Cool) 3.40
AEER (Cool) 3.37
Power Supply (V/Hz) 220-240/1/50
Weight - Indoor (kg) 59
Weight - Outdoor (kg) 105
Capacity Range - Cool (kW) 3.5~14.5
Capacity Range - Heat (kW) 4.0~16.5
EER/COP (Cool/Heat) 3.40 / 3.80
Airflow (I/s) 905 / 765 / 625 / 490
Indoor Dimension (W x D x H) [mm] 1350 x 490 x 425
Outdoor Dimension (W x D x H) [mm] 950 x 370 x 1350
Weight (Indoor Net/Gross) [kg] 59 / 70
Sound Pressure Level (dB/A) 47/44/42/39
Sound Power Level - Outdoor (dB/A) 69
Refrigerant Type R32
