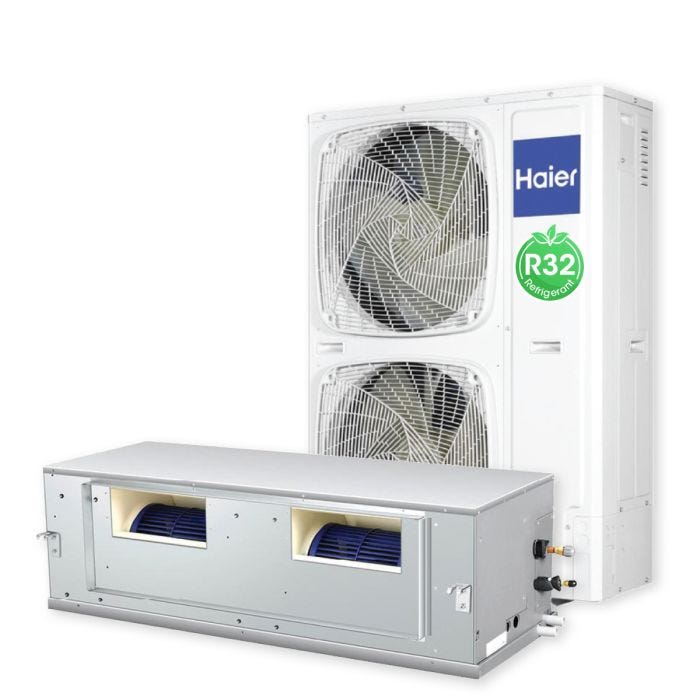

10.0kW R32 Haier Ducted Reverse Cycle Air Conditioner

Single Phase Haier Ducted Air Conditioner with 10.5kW output capacity and R32 refrigerant.

You may also need

MDO-X 450 x 450 Spring Clip Kit-450
SKU: 231224

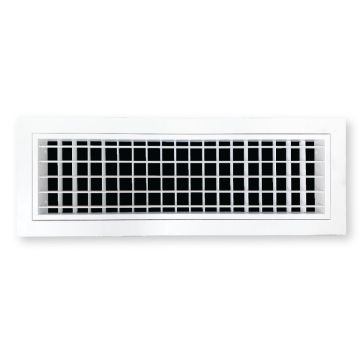

Double Deflection 600 x 250mm Neck / 653 x 303mm Face
SKU: 244230
Egg Crate Hinged Filter Grille 400 x 400mm Neck / 447 x 447mm Face
SKU: 244132
MDO-X 230 x 330 Spring Clip Kit-200
SKU: 231213
Insulated Return Air Box-1150 x 550 x 600
SKU: 442661
Round Ceiling Diffuser Aluminum PA Plate -150mm
SKU: 245270
MDO-X 350 x 350 Spring Clip Kit-300
SKU: 231217
Removable Core Linear Slot 1200 x 110mm Neck / 1245 x 156mm Face
SKU: 245309

Description

Quiet to run and seamless in appearance, our Smart Power ducted air conditioning systems are the ideal option for comfortable heating and cooling without interrupting your interior. The system is made up of an outdoor unit, an indoor unit hidden in the ceiling and discreet vents connected via flexible ducting. Plus, with optional Smart Zone control, you can control the temperature in individual rooms.

Haier High Static Ducted Air Conditioner

The Smart Power high static ducted indoor unit delivers powerful heating and cooling to every room, installed hidden in the ceiling cavity or under the floor for an uninterrupted interior.

Smart Power

Haier’s Smart Power ducted air conditioning systems provide an effective whole-of-home heating and cooling solution. The system is made up of an outdoor unit in a suitable location, indoor unit often located in the ceiling, flexible ductwork to deliver airflow to multiple rooms through discreet vents and controller for the whole air conditioning system.



Smart Zone Control

For control over the airflow to individual rooms, Haier offers an optional SmartZone controller. With up to eight controllable zones, SmartZone lets you turn the airflow on or off to rooms depending on how they are used, minimising unnecessary heating or cooling.



Corrosion Protection

The Blue Fin coating on the indoor and outdoor coil is hydrophilic for quick water drainage and resistance against corrosion.



R32 Low Impact Refrigerant

Our air conditioning systems use a next-generation R32 refrigerant, which efficiently carries heat and has 33% the global warming potential of R410A.

Specifications

Rated Capacity - Cool 10.0
Rated Capacity - Heat 11.5
EER (Cool) 3.21
AEER (Cool) 3.17
Power Supply (V/Hz) 220~240 / 1 / 50
Weight - Indoor (kg) 59
Capacity Range - Cool (kW) 2.5~11.0
Capacity Range - Heat (kW) 2.5~12.0
EER/COP (Cool/Heat) 3.21 / 3.61
Airflow (I/s) 800 / 665 / 525 / 385
Indoor Dimension (W x D x H) [mm] 1350x490x425
Outdoor Dimension (W x D x H) [mm] 950x370x965
Weight (Indoor Net/Gross) [kg] 59 / 70
Sound Pressure Level (dB/A) 45/41/37/33
Sound Power Level - Outdoor (dB/A) 68
Refrigerant Type R32

Downloads

Delivery and Returns

Deliveries

Options for delivery or pickup from your nearest branch. Freight costs calculated at Checkout.

Similar

14.0kW R32 Samsung Ducted Reverse Cycle Air Conditioner
10.0kW R32 Mitsubishi Electric Ducted Reverse Cycle Air Conditioner

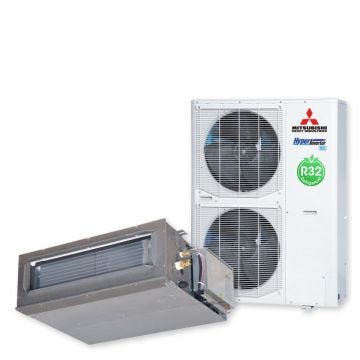

12.5kW R32 Mitsubishi Heavy Industries Hyper Inverter
