16.0kW 3-Phase R32 Samsung Ducted Reverse Cycle Air Conditioner
3 Phase Samsung Ducted Air Conditioner with 16.0kW output capacity and R32 refrigerant.
You may also need
Description
Samsung Ducted Air Conditioners are designed to keep on working, even on those extremely hot or cold days.
Samsung Premium Duct S2+
 |
| R32 Refrigerant |
 |
| Made for Australia |
 |
| Powerful & Fast |
 |
| Robust |
Made to fit in more places – perfect for renovations
A splittable type indoor unit can separate the fan and heat exchanger section, making it easier to position into tight roof space – perfect for renovations. Combined with hanging brackets positioned to minimise obstruction, installation has never been this easy.
Works great with AirTouch
| For ultimate control of individual room’s airflow from a beautiful touchscreen console, app, or smart assistant, specify AirTouch with your Samsung Ducted Air Conditioner. |
 |
PREMIUM DUCT S2+
Works smart to keep you comfortable all year round
 |

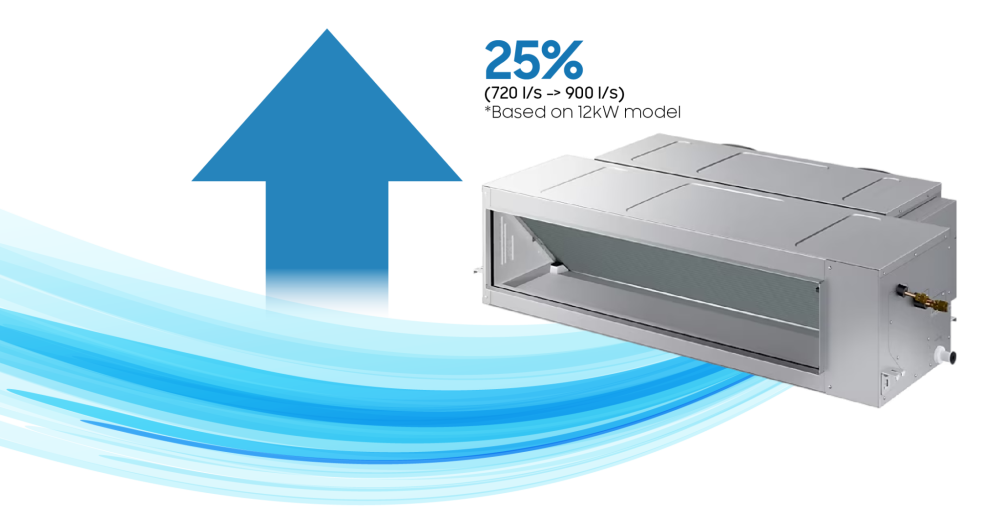

| Powerful airflow |
|
Strong and robust construction brings a maximum of 25% more air-volume than our standard model* meaning you stay comfortable in all parts of your home. *Compared to 12kW model. |
 |
| Fits in small places, covers large spaces |
| Our Duct S2+ is designed to be small and discrete. Its minimalist modern style creates a sophisticated look, allowing it to fit seamlessly into any home. |
Made for Australia
 |
| Easy to install |

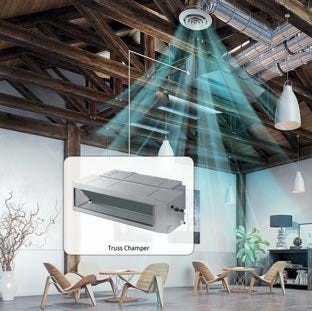

| A light, compact design with a quality finish means the S2+ can easily be manoeuvred into tight installation spaces. The narrow fan casing section fits in between roof trusses or in between tight gaps. |
 |

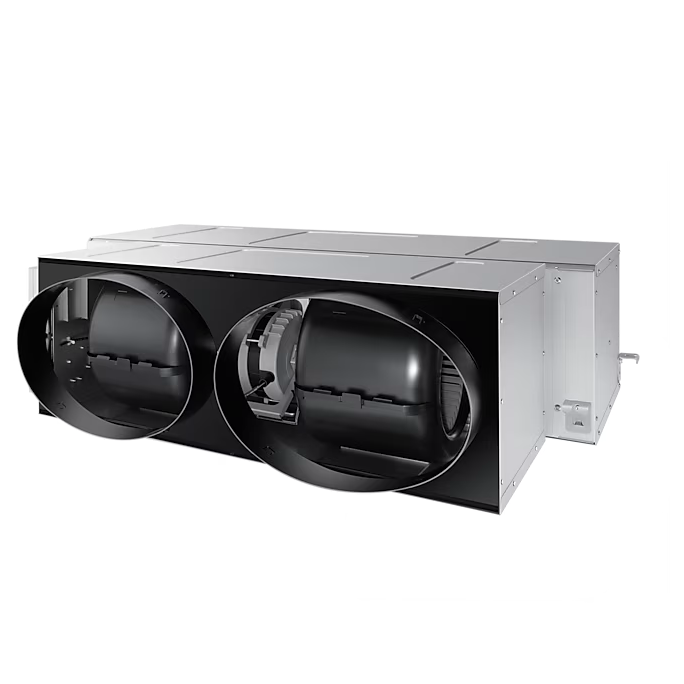

| Ready to go – return air flange connection |
| Equipped with a return air flange connection, you can rest assured knowing that the correct return air size is used. This means there is one less item to worry about, saving time and cost. |
 |

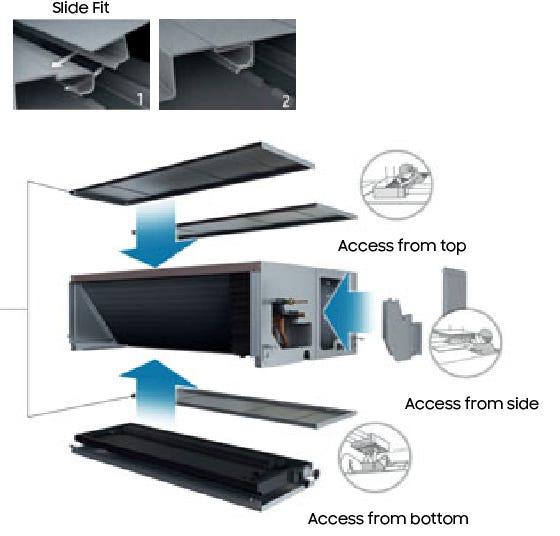

| Easy maintenance |
| Most ducted air conditioners are installed in a variety of locations, so they need to be accessed in different ways for maintenance. The Samsung Duct S2+ air conditioner is designed to be accessed from three directions – top, side and bottom – making it easier to maintain wherever it’s installed. |
Specifications
| Indoor Air Flow (I/s) Turbo/High/Medium/Low | 1,116 / 966 / 800 |
| Power Supply (V/Hz) | 380-415V, 50Hz |
| Weight - Indoor (kg) | 66.5 |
| Capacity Range - Cool (kW) | 5.8-18.0 |
| Capacity Range - Heat (kW) | 4.2-20.0 |
| EER/COP (Cool/Heat) | 3.30/3.73 |
| Indoor Dimension (W x D x H) [mm] | 1350 x 899 x 360 |
| Outdoor Dimension (W x D x H) [mm] | 940 x 330 x 1420 |
| Supply Air Opening (W x H) [mm] | 1154 x 243 |
| Return Air Opening (W x H) [mm] | 2 x spigot, each spigot to suit Ø16” (Ø400mm) round flexible duct |
| Sound Pressure Level (dB/A) | 55 / 57 |
| Sound Power Level - Outdoor (dB/A) | 71 |
