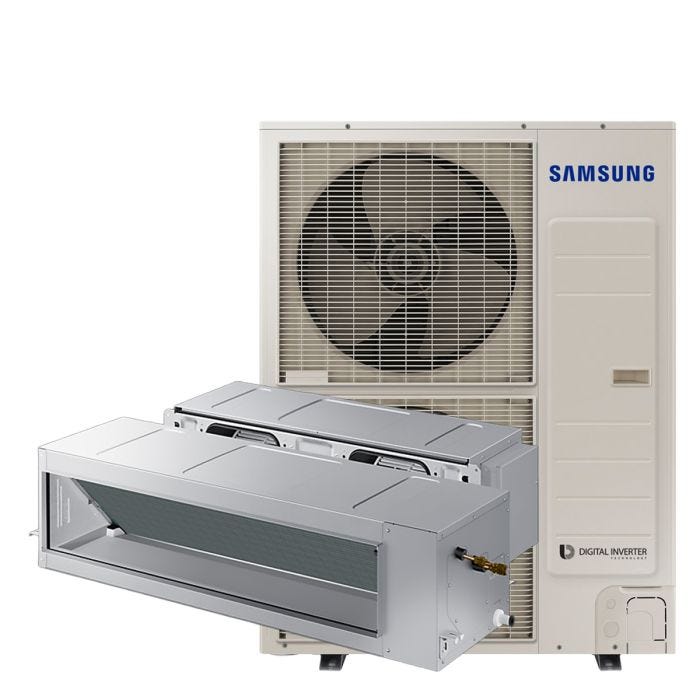

16.0kW R32 Samsung Ducted Reverse Cycle Air Conditioner

Single Phase Samsung Ducted Air Conditioner with 16.0kW output capacity and R32 refrigerant.

You may also need

V-Form Airclean Filter 900 x 500
SKU: 664474
Egg Crate Hinged Filter Grille 800 x 600mm Neck / 847 x 647mm Face
SKU: 245623
MDO-S Grilles Only
Linear Bar Grille 800 x 100mm Neck / 840 x 140mm Face
SKU: 247309
Jet Ball Diffuser
Egg Crate Hinged Filter Grille 750 x 550mm Neck / 797 x 597mm Face
SKU: 247203
Nude Core 3 Zero
Linear Bar Grille 400 x 200mm Neck / 440 x 240mm Face
SKU: 247316

Description

Samsung Ducted Air Conditioners are designed to keep on working, even on those extremely hot or cold days.


Samsung Premium Duct S2


R32 Refrigerant

Made for Australia

Powerful & Fast

Robust

Made to fit in more places – perfect for renovations

A splittable type indoor unit can separate the fan and heat exchanger section, making it easier to position into tight roof space – perfect for renovations. Combined with hanging brackets positioned to minimise obstruction, installation has never been this easy.

Works great with AirTouch


For ultimate control of individual room’s airflow from a beautiful touchscreen console, app, or smart assistant, specify AirTouch with your Samsung Ducted Air Conditioner.

Powerful Airflow

Samsung Duct S2 indoor units contain up to 3 fans1 and are designed to handle duct lengths with static pressures of up to 200pa2; to provide powerful airflow in your home.

Eliminates viruses for healthier air

With Virus Doctor the Samsung DUCT S2 Air Conditioner protects against airborne diseases. It uses S-Plasma ion technology to eliminate 99% of contaminants, bacteria and viruses in the air, including the Influenza A and Corona viruses. It has also been approved by the British Allergy Foundation (BAF) for its effectiveness in eliminating allergens. So it keeps the air you breathe clean and healthy.




New Era for Refrigerant R32

Refrigerants are an essential part of air conditioning, it is important to choose refrigerant that has a low environmental impact. Samsung has added a new type of refrigerant to its air conditioning range to help protect the ozone layer and to help reduce global warming.

Quiet, High Performance by Twin BLDC Compressor

A key contributor to Samsung Ducted systems efficiency is its advanced compressor technology Adopting Twin Brushless Direct Current (BLDC) rotary compressor with premium moving parts, Samsung ducted system delivers efficient and reliable performance.



3-way service access for easy maintenance

Most ducted air conditioners are installed in a variety of locations, so they need to be accessed in different ways for maintenance. The Samsung DUCT S2 Air Conditioner is designed to be accessed from three directions – top, side and bottom – using an easy to remove Slide Fit cover. As a result, it’s much easier to maintain wherever it’s installed.

Specifications

Indoor Air Flow (I/s) Turbo/High/Medium/Low 1,116 / 966 / 800
Power Supply (V/Hz) 220-240V, 50Hz
Weight - Indoor (kg) 66.5
Capacity Range - Cool (kW) 5.8-18.0
Capacity Range - Heat (kW) 4.2-20.0
EER/COP (Cool/Heat) 3.30/3.73
Indoor Dimension (W x D x H) [mm] 1350 x 899 x 360
Outdoor Dimension (W x D x H) [mm] 940 x 330 x 1420
Supply Air Opening (W x H) [mm] 1154 x 243
Return Air Opening (W x H) [mm] 2 x spigot, each spigot to suit Ø16” (Ø400mm) round flexible duct
Sound Pressure Level (dB/A) 55 / 57
Sound Power Level - Outdoor (dB/A) 71
