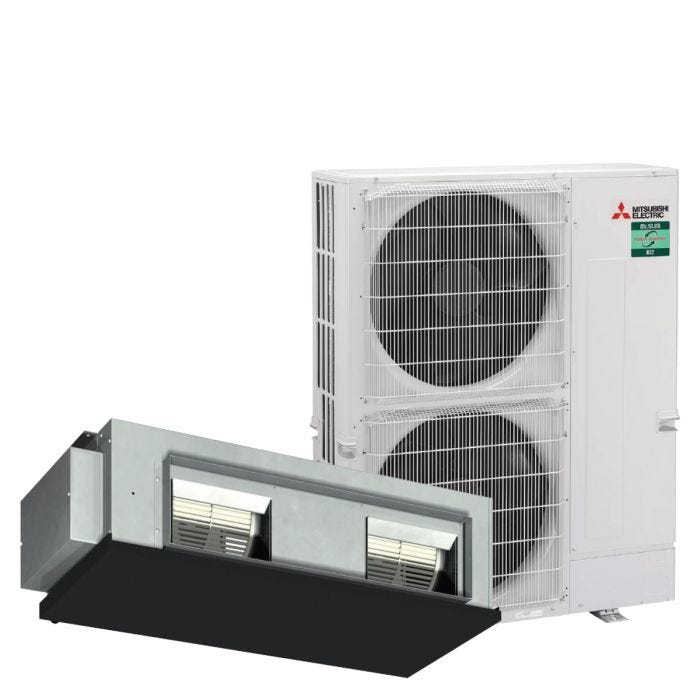

14.0kW R32 Mitsubishi Electric Ducted Reverse Cycle Air Conditioner

Single Phase Mitsubishi Electric Ducted Air Conditioner with 14.0kW output capacity and R32 refrigerant.

You may also need

MDO-X 300 x 300 Plastic Clip Kit-250
SKU: 231415
Nude Core 3 Zero-250mm
SKU: 160077
Removable Core Linear Slot 900 x 110mm Neck / 945 x 156mm Face
SKU: 245307
Double Deflection 450 x 175mm Neck / 503 x 228mm Face
SKU: 247305
Double Deflection 500 x 500mm Neck / 553 x 553mm Face
SKU: 244052
Egg Crate Hinged Filter Grille 900 x 450mm Neck / 947 x 497mm Face
SKU: 244045
Egg Crate Hinged Filter Grille 700 x 500mm Neck / 747 x 547mm Face
SKU: 244311
Firebreak Duct R1.0-400mm
SKU: 110028

Description

Mitsubishi Electric Ducted Air Conditioners

Mitsubishi Electric offers you technology that is quiet, simple to use, energy efficient, and above all, reliable. Mitsubishi Electric ducted air conditioning is climate control at the touch of a button. It provides a central air conditioning solution to maintain total comfort throughout the whole home.

Features

  • R32 Refrigerant
  • Flexibility ducting design
  • Optional PAR-40MAA Wall mounted controller
  • Longer maximum piping length
  • Optional Zone Controller
  • WiFi Control

Comfort Delivered

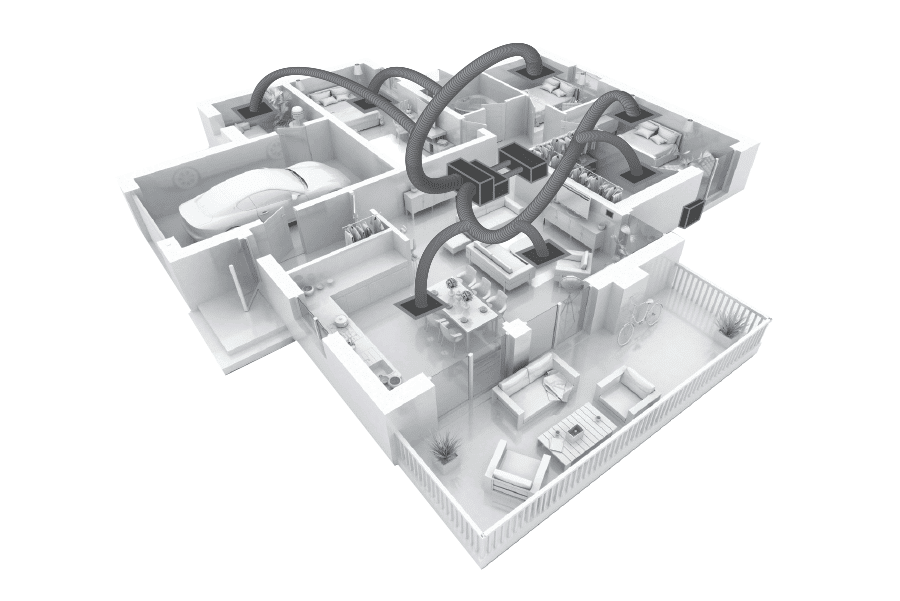

In addition to its conveniently lean design, the PEAM series also provides variable airflow settings that further enhance the unit’s versatility. No matter the layout of your home, a PEAM ducted air conditioner can ensure optimal performance and even airflow distribution throughout the entire house.

Five-stage external static pressure conversions ranging from 35 to 125 Pa and three fan speeds provide flexibility in designing ductwork to suit a wide range of building types with varying static pressure requirements. All of this means the PEAM series can deliver comfort to where you need it.

Specifications

Rated Capacity - Cool 14.0
Rated Capacity - Heat 16.0
EER (Cool) 3.41
AEER (Cool) 3.33
Power Supply (V/Hz) 230 / 1 / 50
Weight - Indoor (kg) 63.00
Weight - Outdoor (kg) 110.00
Capacity Range - Cool (kW) 6.2~15.3
Capacity Range - Heat (kW) 5.7~18.0
EER/COP (Cool/Heat) 3.41 / 4.10
Airflow (I/s) 800 – 1000
Indoor Dimension (W x D x H) [mm] 1400 x 634 x 400
Outdoor Dimension (W x D x H) [mm] 1050 x 330 x 1338
Weight (Indoor Net/Gross) [kg] 63.00
Sound Power Level - Indoor (dB/A) 42 – 45
Sound Power Level - Outdoor (dB/A) 50
Refrigerant Type R32
