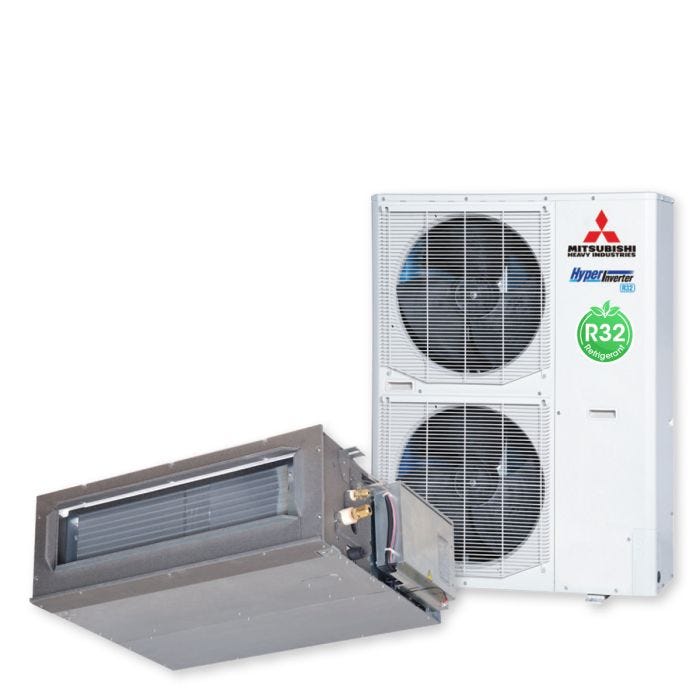

20.0kW 3-Phase R32 Mitsubishi Heavy Industries Hyper Inverter

Three phase MHI high static Hyper Inverter with 20.0kW output capacity and R32 refrigerant.

You may also need

Linear Bar Grille 800 x 100mm Neck / 840 x 140mm Face

SKU: 247309

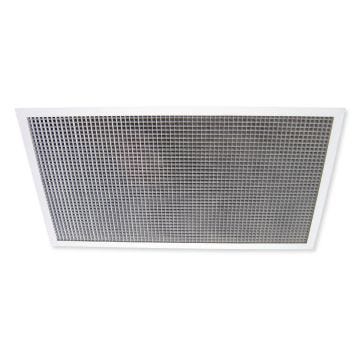

Fixed Core Egg Crate 400 x 400mm Neck / 445 x 445mm Face

SKU: 245603

Double Deflection Register Fixed Core 600 x 400mm Neck / 639 x 439mm Face

SKU: 245673

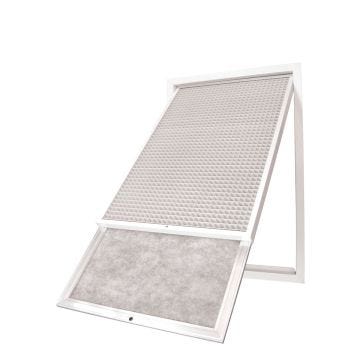

Egg Crate Hinged Filter Grille 700 x 550mm Neck / 747 x 597mm Face

SKU: 245675

Double Deflection Register Fixed Core 600 x 200mm Neck / 639 x 239mm Face

SKU: 244616

MDO-S 230 x 230 4-Way Outlet Plastic Clip Kit

The MDO-S is a ceiling diffuser which can direct air flow for complete control and comfort using unique adjustable air flow grilles. It is also crucial in the installation of an evaporative cooling system. It is made from high impact engineering grade plastic which will not chip, fade, corrode or discolour over time.

Silentflex Duct R1.0

MDO-X Grilles Only

Description

Mitsubishi Heavy Industries FDUA Hyper Inverter Series

Our FDUA series of ducted systems are a quiet and discreet solution for multiple rooms. Coming in a range of capacities ranging from 10kW up to 23.5kW and incorporating a range of convenient features and functions, the FDUA is the perfect heating and cooling solution for any sized Aussie home.

Features

Increased Energy Efficiency

With an improved heat exchanger in the outdoor unit, boosting refrigerant distribution throughout the system, coupled with our highly efficient DC fan motor and R32 refrigerant, the FDUA series boasts industry leading energy efficiencies which means reduced running costs for your home.

Splitable Indoor Unit

Splittable design allows the indoor unit to be separated into two components for easier handling during installation.

Quiet Operation

Thanks to our highly efficient DC fan motor, the FDUA series boasts quiet operation levels. Combined with the unit’s Silent Mode, the FDUA series ensures no interruptions to room acoustics and a good night’s sleep for you and your family.

Wide Operation Range

With a wider operating range, the FDUA series can operate in cooling mode in temperatures up to 50°C making it suitable for the tough Aussie conditions.

Specifications

Rated Capacity - Cool	20.0
Rated Capacity - Heat	22.4
Indoor Air Flow (I/s) Turbo/High/Medium/Low	1333 / 1200 / 1067 / 933
Power Supply (V/Hz)	380-415 / 3 / 50
Weight - Indoor (kg)	88
Weight - Outdoor (kg)	145
Capacity Range - Cool (kW)	6.9~28.0
Capacity Range - Heat (kW)	5.5~31.5
EER/COP (Cool/Heat)	3.46 / 4.12
Indoor Dimension (W x D x H) [mm]	1600 x 893 x 379
Outdoor Dimension (W x D x H) [mm]	970 x 370 x 1505
Sound Pressure Level (dB/A)	52 / 50 / 47 / 45
Sound Power Level - Outdoor (dB/A)	73
Refrigerant Type	R32
