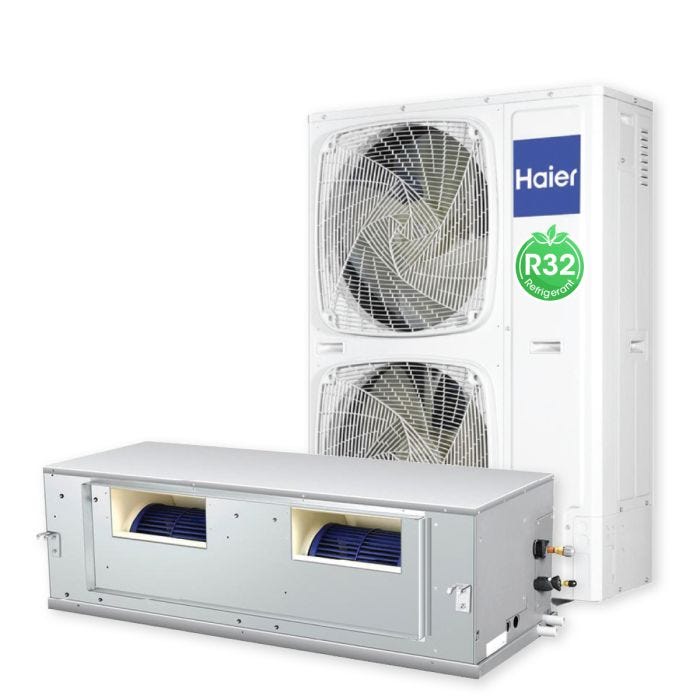

20.0kW 3-Phase R32 Haier Ducted Reverse Cycle Air Conditioner
3 Phase Haier Ducted Air Conditioner with 20.0kW output capacity and R32 refrigerant.
You may also need
Description
Quiet to run and seamless in appearance, our Smart Power ducted air conditioning systems are the ideal option for comfortable heating and cooling without interrupting your interior. The system is made up of an outdoor unit, an indoor unit hidden in the ceiling and discreet vents connected via flexible ducting. Plus, with optional Smart Zone control, you can control the temperature in individual rooms.
Haier 3 Phase High Static Ducted Air Conditioner
The Smart Power high static ducted indoor unit delivers powerful heating and cooling to every room, installed hidden in the ceiling cavity or under the floor for an uninterrupted interior.
Smart Power
Haier’s Smart Power ducted air conditioning systems provide an effective whole-of-home heating and cooling solution. The system is made up of an outdoor unit in a suitable location, indoor unit often located in the ceiling, flexible ductwork to deliver airflow to multiple rooms through discreet vents and controller for the whole air conditioning system.
Smart Zone Control
For control over the airflow to individual rooms, Haier offers an optional SmartZone controller. With up to eight controllable zones, SmartZone lets you turn the airflow on or off to rooms depending on how they are used, minimising unnecessary heating or cooling.
Corrosion Protection
The Blue Fin coating on the indoor and outdoor coil is hydrophilic for quick water drainage and resistance against corrosion.
R32 Low Impact Refrigerant
Our air conditioning systems use a next-generation R32 refrigerant, which efficiently carries heat and has 33% the global warming potential of R410A.
Specifications
| Rated Capacity - Cool | 20.5 |
| Rated Capacity - Heat | 22.8 |
| Indoor Air Flow (I/s) Turbo/High/Medium/Low | 1200 / 1050 / 950 / 850 |
| EER (Cool) | 3.36 |
| AEER (Cool) | 3.33 |
| Power Supply (V/Hz) | 380~415 / 3 / 50 |
| Weight - Indoor (kg) | 96 |
| Weight - Outdoor (kg) | 160 |
| Capacity Range - Cool (kW) | 6.2~23.5 |
| Capacity Range - Heat (kW) | 7.2~24.8 |
| EER/COP (Cool/Heat) | 3.36 / 3.80 |
| Indoor Dimension (W x D x H) [mm] | 1330 x 895 x 500 |
| Outdoor Dimension (W x D x H) [mm] | 1050 x 413 x 1636 |
| Weight (Indoor Net/Gross) [kg] | 96 / 125 |
| Sound Pressure Level (dB/A) | 54 / 50 / 45 |
| Sound Power Level - Outdoor (dB/A) | 75 |
| Refrigerant Type | R410A |
