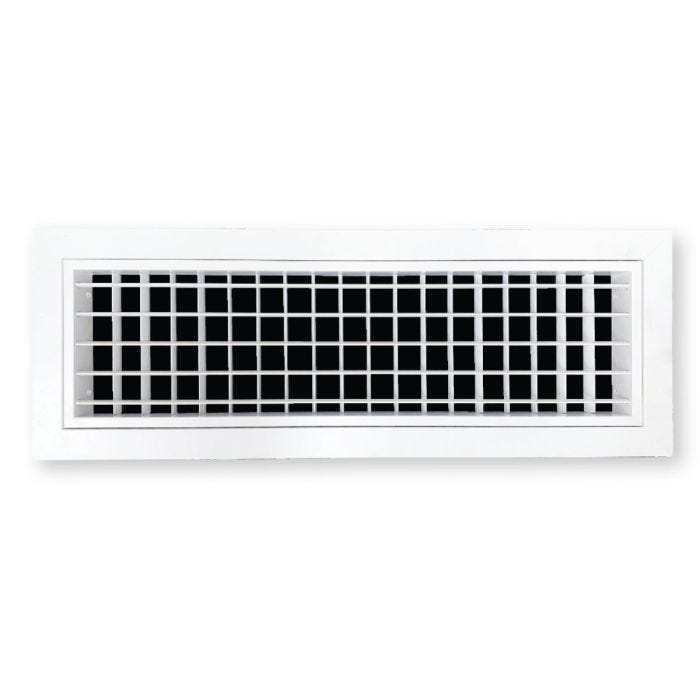

Double Deflection 300 x 250mm Neck / 353 x 303mm Face
Universal outlets or Double Deflection Grilles are generally used in sidewall applications. They consist of two separate rows of individually adjustable vanes - front and rear.
Â
You may also need
Description
The Front Vanes are horizontal so the primary air leaving the outlet is directed above the room occupants and does not reach the breathing zone until well mixed with the secondary room air.
The Rear Vanes are vertical and are used to direct the air in a straight blow or spread the air as required by the room layout. If required, air can be directed at an angle to one or both sides, and still retain a near parallel air stream pattern.
The usual settings, however are straight blow, semi-divergent or fully divergent blow. The blow distance decreases with a greater air spread and the performance charts indicate three different types of blow for normal vane settings.
Specifications
| Neck Size (mm) | 350 x 250mm |
