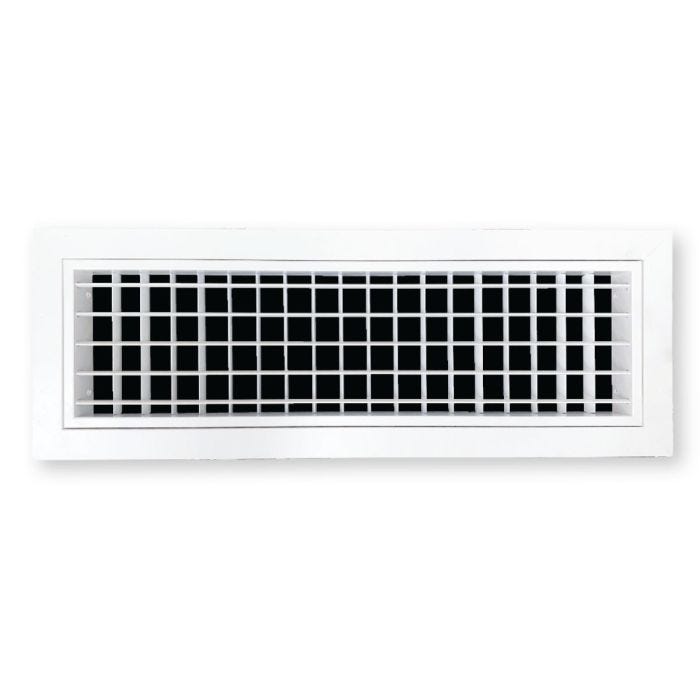

Double Deflection 300 x 150mm Neck / 353 x 203mm Face

247301

Universal outlets or Double Deflection Grilles are generally used in sidewall applications. They consist of two separate rows of individually adjustable vanes - front and rear.

You may also need

Double Deflection 400 x 400mm Neck / 453 x 453mm Face
SKU: 244088
Double Deflection 500 x 100mm Neck / 553 x 153mm Face
SKU: 244402
Double Deflection 500 x 400mm Neck / 553 x 453mm Face
SKU: 244608
Double Deflection 600 x 100mm Neck / 653 x 153mm Face
SKU: 245129
Double Deflection 500 x 250mm Neck / 553 x 303mm Face
SKU: 244223
Double Deflection 400 x 200mm Neck / 503 x 253mm Face
SKU: 244051
Double Deflection Register Fixed Core 400 x 200mm Neck / 439 x 239mm Face
SKU: 244615
Double Deflection 350 x 200mm Neck / 403 x 253mm Face
SKU: 244085

Description

The Front Vanes are horizontal so the primary air leaving the outlet is directed above the room occupants and does not reach the breathing zone until well mixed with the secondary room air.

The Rear Vanes are vertical and are used to direct the air in a straight blow or spread the air as required by the room layout. If required, air can be directed at an angle to one or both sides, and still retain a near parallel air stream pattern.

The usual settings, however are straight blow, semi-divergent or fully divergent blow. The blow distance decreases with a greater air spread and the performance charts indicate three different types of blow for normal vane settings.

Specifications

Neck Size (mm) 300 x 150mm
