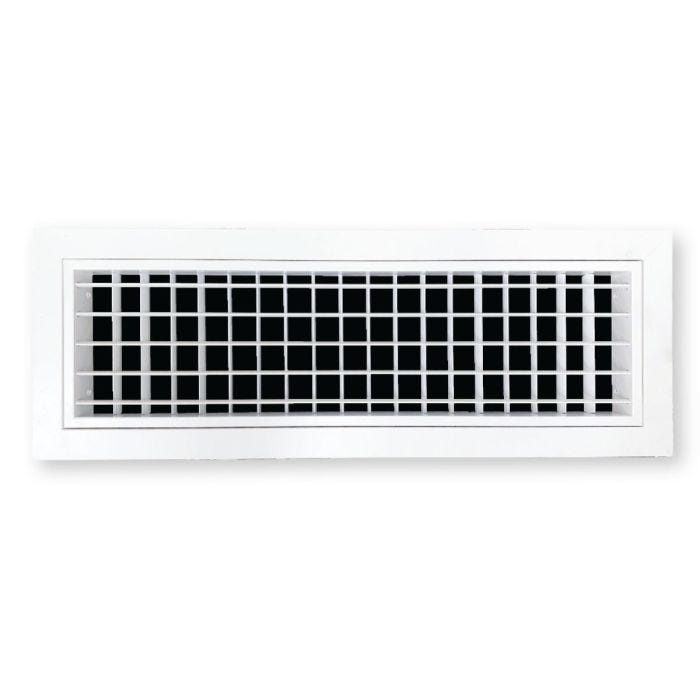

Double Deflection 500 x 200mm Neck / 553 x 253mm Face

244222

Universal outlets or Double Deflection Grilles are generally used in sidewall applications. They consist of two separate rows of individually adjustable vanes - front and rear.

You may also need

Double Deflection Register Fixed Core 300 x 200mm Neck / 339 x 239mm Face
SKU: 244619
Double Deflection 600 x 250mm Neck / 653 x 303mm Face
SKU: 244230
Double Deflection 300 x 250mm Neck / 353 x 303mm Face
SKU: 244218
Double Deflection 400 x 400mm Neck / 453 x 453mm Face
SKU: 244088
Double Deflection Register Fixed Core 600 x 400mm Neck / 639 x 439mm Face
SKU: 245673
Double Deflection Register Fixed Core  300 x 100mm Neck / 339 x 139mm Face
SKU: 244611
Double Deflection 350 x 150mm Neck / 403 x 153mm Face
SKU: 244501
Double Deflection 750 x 250mm Neck / 803 x 303mm Face
SKU: 244606

Description

The Front Vanes are horizontal so the primary air leaving the outlet is directed above the room occupants and does not reach the breathing zone until well mixed with the secondary room air.

The Rear Vanes are vertical and are used to direct the air in a straight blow or spread the air as required by the room layout. If required, air can be directed at an angle to one or both sides, and still retain a near parallel air stream pattern.

The usual settings, however are straight blow, semi-divergent or fully divergent blow. The blow distance decreases with a greater air spread and the performance charts indicate three different types of blow for normal vane settings.

Specifications

Neck Size (mm) 500 x 200mm
