RAG-X Kit 350mm Spigot

The RAG-X from Polyaire is an injection moulded high strength plastic complete Return Air assembly designed for more efficient installation, operation and maintenance.

You may also need

Square Outside Air Louvre 200 x 200mm Neck / 254 x 254mm Face

SKU: 244000

Double Deflection 300 x 150mm Neck / 353 x 203mm Face

SKU: 247301

Silent Air Grille 495 x 495mm

SKU: 231082

Square Outside Air Louvre 230 x 180mm Neck / 284 x 234mm Face

SKU: 244404

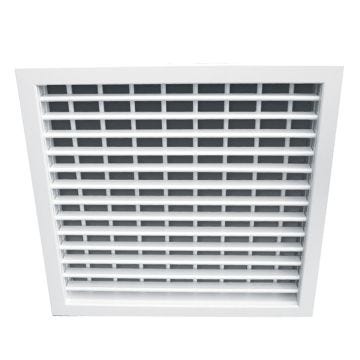

Double Deflection Register Fixed Core 400 x 200mm Neck / 439 x 239mm Face

SKU: 244615

Square Swirl Diffuser PSA-Q 595mm Face / 398mm Neck

SKU: 247093

Linear Bar Grille 350 x 150mm Neck / 390 x 190mm Face

SKU: 247315

Square Outside Air Louvre 600 x 600mm Neck / 654 x 654mm Face

SKU: 244247

Description

The RAG-X one piece construction provides a significantly improved appearance compared to traditional grilles. It is simpler and easier to fit and reduces installation time.

Features

Tri Filter for efficient dust removal.
High Efficiency Low Static Filter.
Black filter to reduce see through effect.
Easy filter and grille removal for cleaning or replacement.
Large free area for quiet efficient air flow.
Aluminium Filter Frame.
Grille release clips are hidden from view but are still instantly accessible.
Grille opening can be reversed for ease of use.
Attractive Eggcrate grille design.
Rigid return air box.
Simple clip in installation.
Clip on reducers easily accommodate varying duct sizes.

Installation Features

750 x 450/1 x 400mm Round Connector.
900 x 500/2 x 400mm Round Connector.
1195 x 595/2 x 400mm Round Connector.

The product features a rigid one-piece shell for easy fitment. It enables quick and easy duct attachment using the standard Quick Fix Spigot or Reducer, where the duct is fitted to the collar and then clipped on in the roof. Attachment to the ceiling is facilitated by wing nut adjustment, requiring no tools for installation. Sturdy metal wire clips ensure long life and prevent sagging. The Filter Grille can be fitted either way and swings out for easy cleaning. Front Grille Clips are positively locking and easy to use. It boasts a large free area for efficient airflow. The filter can be simply slid in and out for maintenance. The product features a more airflow-efficient egg crate grille style.

Construction

The return air box boasts a one-piece molded design, ensuring strength, leak resistance, and low noise levels. Constructed entirely from plastic, it offers longevity, minimal noise, and excellent resistance to corrosion and rust. The grille is reversible for added convenience, while the Tri Filter is easily removable for maintenance. Additionally, it features an aluminum frame filter, further enhancing its durability and efficiency.
