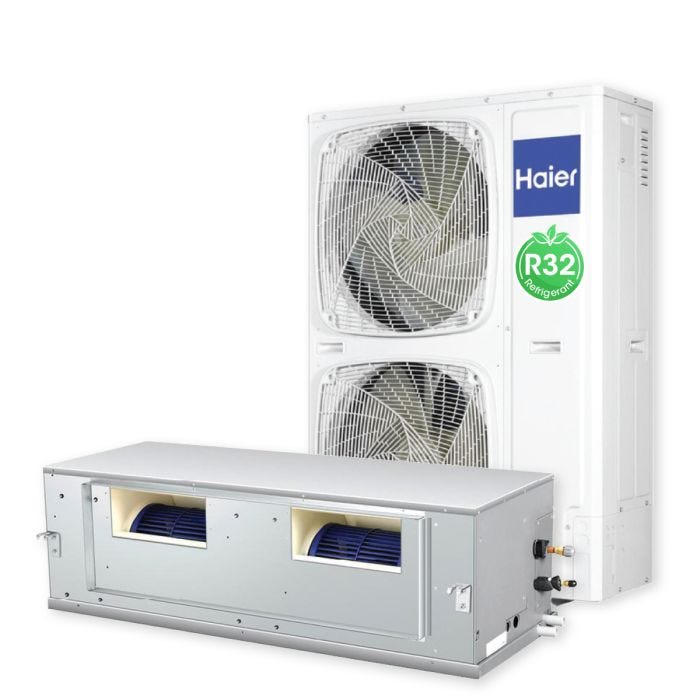

15.5kW R32 Haier Ducted Reverse Cycle Air Conditioner

Single Phase Haier Ducted Air Conditioner with 15.5kW output capacity and R32 refrigerant.

You may also need

Double Deflection 800 x 100mm Neck / 853 x 153mm Face
SKU: 245682
Fixed Core Linear Slot 1200 x 135mm Neck / 1232 x 170mm Face
SKU: 245299
Plastic Butterfly Neck Adaptor 350 x 350
SKU: 431071
Double Deflection 450 x 175mm Neck / 503 x 228mm Face
SKU: 247305
Egg Crate Hinged Filter Grille 700 x 500mm Neck / 747 x 547mm Face
SKU: 244311
Double Deflection 450 x 450mm Neck / 503 x 503mm Face
SKU: 244227
Linear Bar Grille 350 x 100mm Neck / 390 x 140mm Face
SKU: 247310
Double Deflection 500 x 300mm Neck / 553 x 353mm Face
SKU: 244093

Description

Quiet to run and seamless in appearance, our Smart Power ducted air conditioning systems are the ideal option for comfortable heating and cooling without interrupting your interior. The system is made up of an outdoor unit, an indoor unit hidden in the ceiling and discreet vents connected via flexible ducting. Plus, with optional Smart Zone control, you can control the temperature in individual rooms.

Haier High Static Ducted Air Conditioner

The Smart Power high static ducted indoor unit delivers powerful heating and cooling to every room, installed hidden in the ceiling cavity or under the floor for an uninterrupted interior.

Smart Power

Haier’s Smart Power ducted air conditioning systems provide an effective whole-of-home heating and cooling solution. The system is made up of an outdoor unit in a suitable location, indoor unit often located in the ceiling, flexible ductwork to deliver airflow to multiple rooms through discreet vents and controller for the whole air conditioning system.



Smart Zone Control

For control over the airflow to individual rooms, Haier offers an optional SmartZone controller. With up to eight controllable zones, SmartZone lets you turn the airflow on or off to rooms depending on how they are used, minimising unnecessary heating or cooling.



Corrosion Protection

The Blue Fin coating on the indoor and outdoor coil is hydrophilic for quick water drainage and resistance against corrosion.



R32 Low Impact Refrigerant

Our air conditioning systems use a next-generation R32 refrigerant, which efficiently carries heat and has 33% the global warming potential of R410A.

Specifications

Rated Capacity - Cool 15.5
Rated Capacity - Heat 18.0
Indoor Air Flow (I/s) Turbo/High/Medium/Low 1115/945/780 /615
EER (Cool) 3.21
AEER (Cool) 3.19
Power Supply (V/Hz) 220-240 / 1 / 50
Weight - Indoor (kg) 61
Weight - Outdoor (kg) 105
Capacity Range - Cool (kW) 3.5~17.5
Capacity Range - Heat (kW) 6.0~19.0
EER/COP (Cool/Heat) 3.21 / 3.75
Indoor Dimension (W x D x H) [mm] 1350x490x425
Outdoor Dimension (W x D x H) [mm] 950x370x1350
Weight (Indoor Net/Gross) [kg] 61 / 72
Sound Pressure Level (dB/A) 51 / 47 / 44 / 40
Sound Power Level - Outdoor (dB/A) 73
Refrigerant Type R32
